ARCTIUM ENERGY COMPANY Manufacturer · Solution designer · Turnkey
Power systems,
engineered and
delivered.
Battery storage, critical power and everything between the source and the load.
41 Packages engineered
12 Markets served
20 MWh Largest platform
1.2 MW Largest UPS
Scroll to assemble
What do you need?
Start with the problem, not the product
Pick one. We will show the architecture we would use and the systems in it.
The utility goes and the plant stops. P12 · 500 kW – 5 MW protected
- Storage responds instantly, no transfer gap
- Generator adds duration, not milliseconds
- Site islands on the PCC breaker and keeps running
P12 // GRID + BESS + GENERATOR
NO UPS
Grid
Generator
BESS
PCS / Inverter
DC Protection
Breaker
Switchboard
Transformer (if required)
Protection Relay
Loads
EMS / Controller
BMS
Swipe to pan →
Typical package
Hybrid Resilience Plant 500 kW – 5 MW protected Systems that suit it
See the drawing Racks and cooling cannot see a single interruption. P21 · 250 kW – 2 MW critical
- UPS covers the generator start
- Cooling moves with the essential bus
- Automatic transfer, coordinated protection
P21 // GRID + GENERATOR + UPS
WITH UPS
Grid
Generator
BESS
Breaker
Switchboard
ATS
Protection Relay
Loads
Critical Load
UPS
EMS / Controller
Cooling / CDU
Swipe to pan →
A handful of intervals sets the whole bill. P05 · 125 kW – 2 MW reduction
What a demand charge actually bills you for
On top of the per-kWh energy charge, utilities like BC Hydro bill commercial and industrial accounts a demand charge, based on your single highest 15-minute draw all month. One short spike sets that number for the next 30 days. Our batteries shave the spike, so a smoother load curve means a lower bill.
LOAD PROFILE // BEFORE & AFTER STORAGE
700 → 320 KW
Before — grid only Two equipment spikes set the whole month’s demand charge
After — with Arctium BESS The battery covers both spikes before the grid ever sees them
Grid draw
From battery
Billed peak

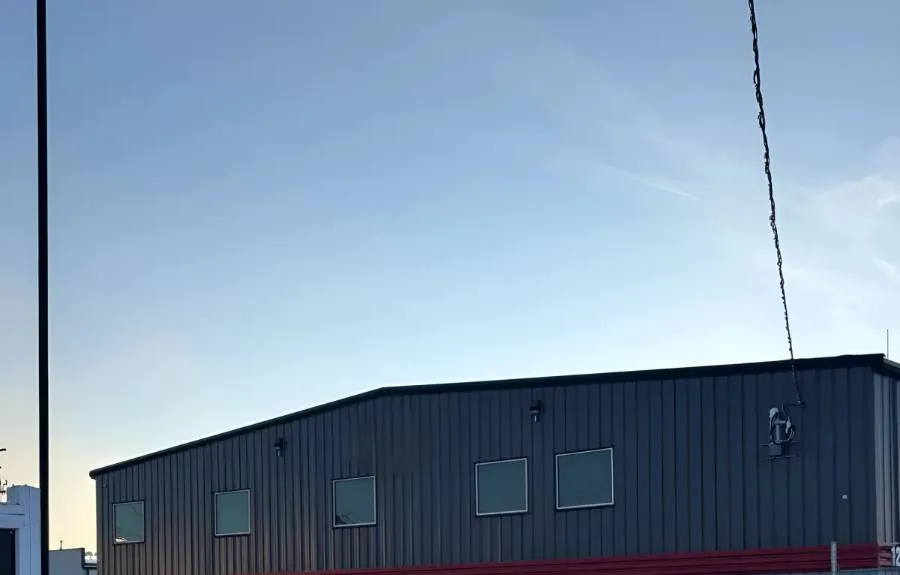

Load profile is illustrative, built to show the mechanism. The billed-peak figures and monthly savings are Arctium’s reported results from the Burnaby project — see projects.
Swipe to pan →
- Discharge into the measured demand interval
- New load fits the existing service
- EMS dispatches against your actual tariff
P05 // GRID + BESS
NO UPS
Grid
BESS
PCS / Inverter
DC Protection
Breaker
Switchboard
Transformer (if required)
Protection Relay
Loads
EMS / Controller
BMS
Swipe to pan →
Typical package
Grid Smoothing & Peak Shaving 125 kW – 2 MW reduction Systems that suit it
See the drawing The new heat pumps will not fit the service.
- Battery holds grid import below the limit
- New load runs on the service you already have
- Up to 80% of the battery may be covered by BC Hydro ESI
Gensets sized for the spike, running at 30% load. P31 · 500 kW – 5 MW support
- Set carries average load, battery takes peaks
- Fewer run-hours, less fuel, longer overhauls
- Plant sized for average, not for the spike
P31 // BESS + GENERATOR
PARTIAL
Generator
BESS
PCS / Inverter
DC Protection
Breaker
Switchboard
Transformer (if required)
Loads
EMS / Controller
BMS
Cooling / CDU
Swipe to pan →
Typical package
Partial Diesel Replacement 500 kW – 5 MW support Systems that suit it
See the drawing No wire coming, and fuel arrives by barge. P09 · 100 kW – 5 MW island
- Grid-forming PCS holds the island
- Renewables serve load first, then charge
- Sized on worst-season adequacy
P09 // BESS + RENEWABLE
NO UPS
Solar / Wind
BESS
PCS / Inverter
DC Protection
Breaker
Switchboard
Transformer (if required)
Loads
EMS / Controller
BMS
Swipe to pan →
Typical package
Renewable Island Microgrid 100 kW – 5 MW island Systems that suit it
See the drawing Chargers would breach the service on day one. P38 · Sized from charger duty
- Service sized to average, not simultaneous max
- Utility upgrade deferred or avoided
- EMS holds the import cap and allocates chargers
P38 // GRID + BESS
EV CHARGING
Grid
BESS
PCS / Inverter
DC Protection
Breaker
Switchboard
Transformer (if required)
Protection Relay
Loads
EMS / Controller
BMS
EV Chargers
Swipe to pan →
Typical package
EV Hub with BESS Buffer Sized from charger duty Systems that suit it
See the drawing How we work
Produce, design, deliver
PRODUCE
We build the systems

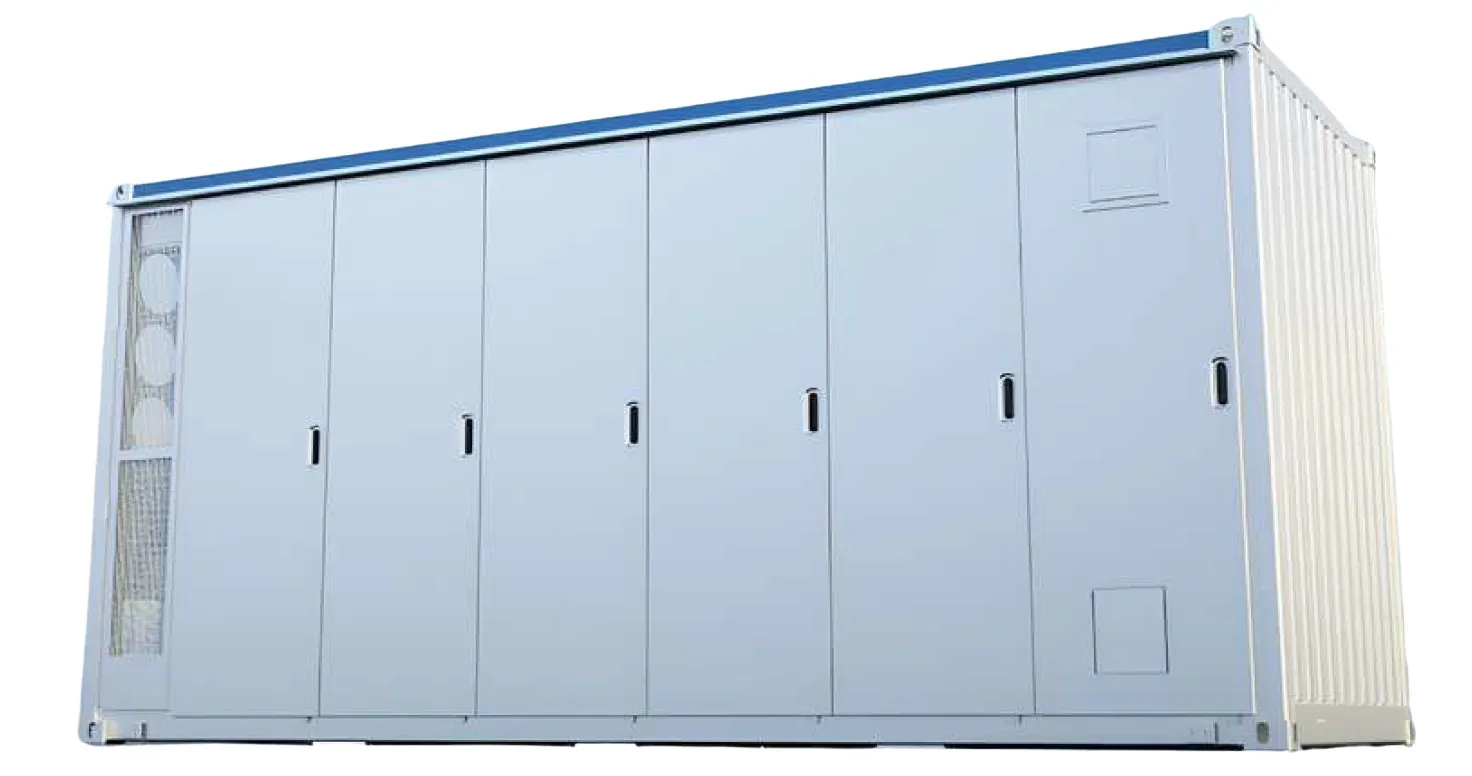

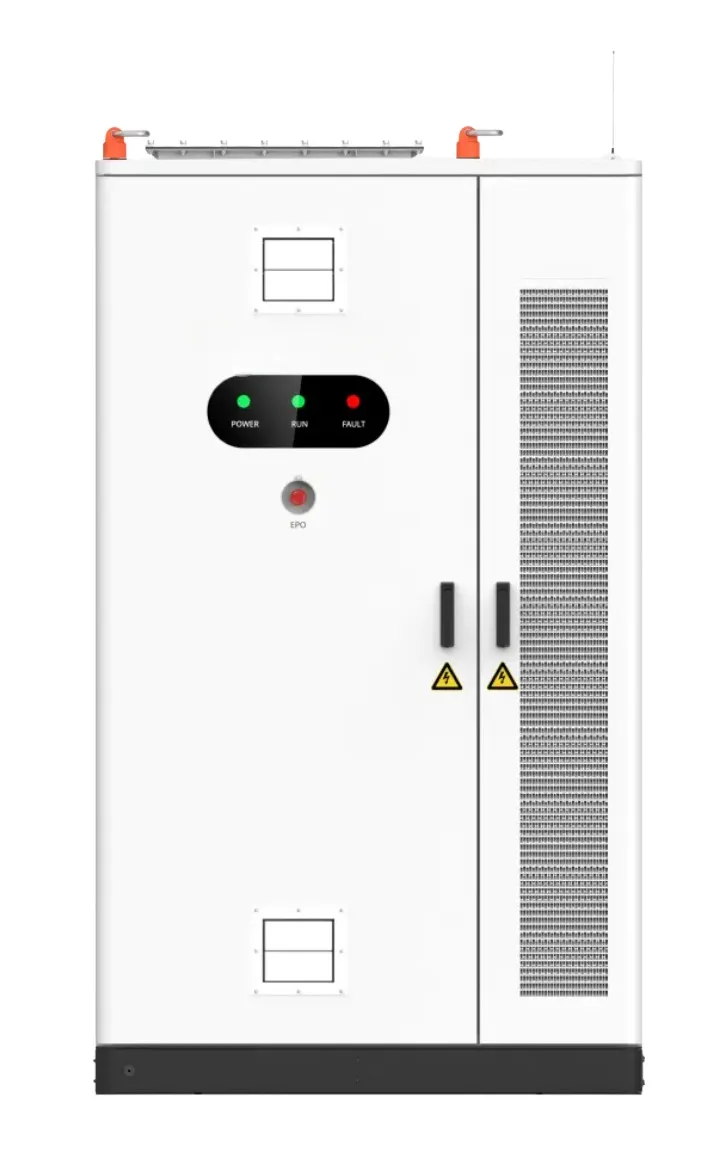

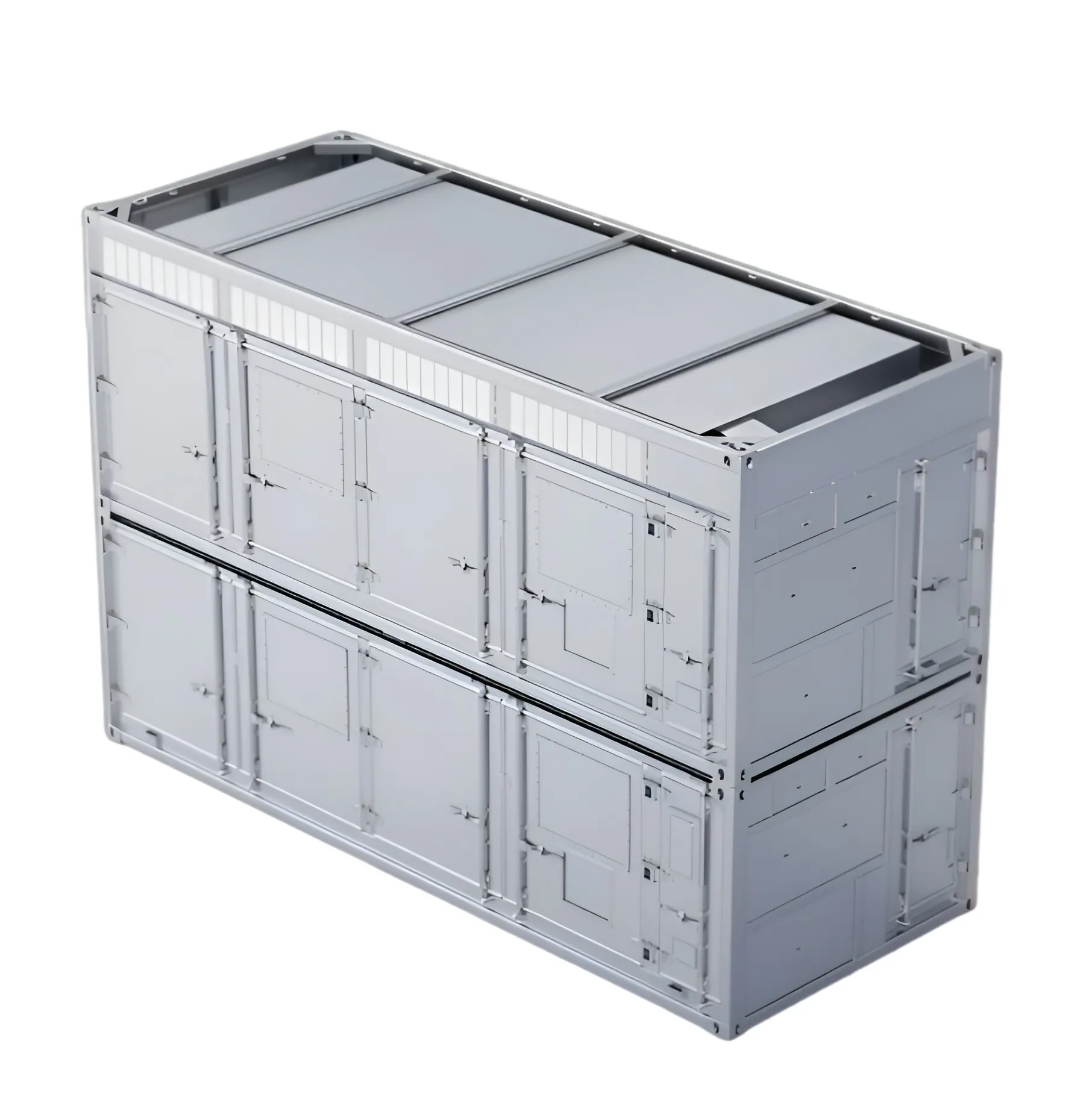

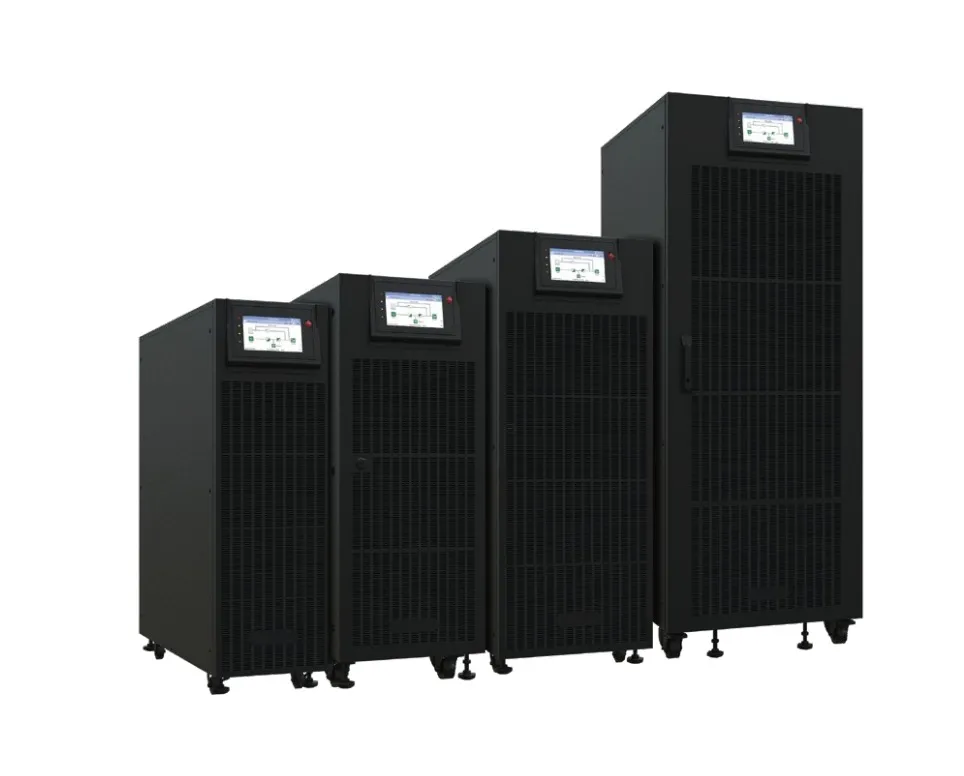

BESS from cabinet to 20 MWh container. UPS from 10 kVA to 1.2 MW. Ours, under our name.
DESIGN
We design the solution
The whole electrical package around it — sized to a measured load and a real tariff.
DELIVER
We deliver it turnkey
Supply, integration, EMS programming, commissioning. One contract, one number to call.
The complete package
Everything between the source and the load
Generation Solar, wind, diesel, gas
Storage 211 kWh – 20 MWh
Critical power 10 kVA – 1.2 MW
Conversion PCS, inverters, MPPT
Controls EMS, relays, metering
Thermal Liquid cooling, CDU, HVAC
Protection Switchgear, DC, anti-islanding
Balance of plant Cabling, civil, fire
Projects
Delivered in BC and Alberta
Partners
When the right system is not one of ours
Start with the load
